Material Handling Equipment
Steel Material Grade
Structural Tubular Steel Frame & 3mm Steel Plate Deck
Standard Dimensions
Platform 1200 x 800 mm / 1500 x 900 mm, Handle Height 950mm
Protective Finish
Hardwearing Powder Coat & Non-Slip Deck Finish
Engineering Codes
FEM 10.2.02 / RMI 2012 / ISO 9001

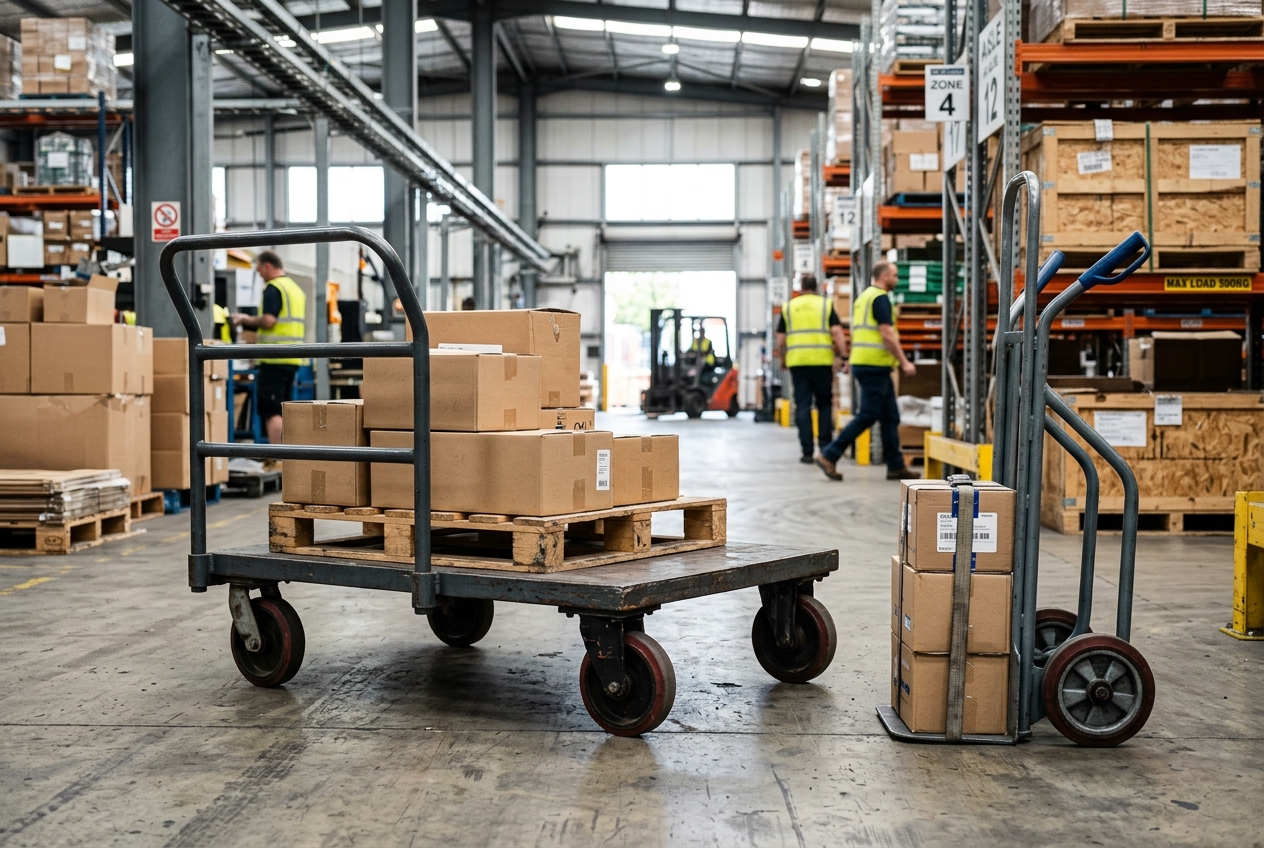

Heavy-Duty Industrial Warehouse Transport Trolley
Engineered for rugged material handling in warehouses, machine shops, and manufacturing facilities. Heavy steel deck supported by dual rigid and dual swivel heavy polyurethane caster wheels.
Key Engineering Features:
- Load capacity options: 500 kg, 1,000 kg, and 1,500 kg heavy freight transport.
- Heavy-duty 200mm industrial polyurethane wheels with precision roller bearings for low rolling resistance.
- Integrated foot brake pedal locks swivel casters firmly on slopes.
- Reinforced tubular steel push handle with optional removable wire mesh side panels.
Quality Assurance Guarantees:
Robotic MIG/MAG seam welding with 100% penetration
Positive spring locking safety pins on all connectors
High-capacity seismic floor baseplates with expansion anchors
Automated 7-stage chemical wash pretreatment before powder coat
Manufacturing & Structural Tolerances
| Raw Material Steel Grade | Q355B / Q235B High-Yield Cold-Formed Structural Steel |
|---|---|
| Yield Strength Limit | Minimum 355 MPa (51,500 psi) guaranteed yield point |
| Upright Profile Geometry | 90mm - 140mm roll-formed omega profile with stiffening ribs |
| Length Tolerance | Strict dimensional tolerance within ±0.5 mm per bay height |
| Beam Deflection Ratio | Engineered below L/200 under maximum rated payload (zero sag) |
| Connector Endplates | 3-claw and 4-claw heavy forged claw brackets with safety pins |
| Finish Cure Temperature | Electrostatic polyester powder cured at 200°C for lifetime adhesion |
10-Year Comprehensive Structural Warranty
Backed directly by Bodor Rack Industries Ltd. Plant EngineeringAll structural steel upright columns, box beams, cantilever arms, and seismic baseplates are warranted against structural failure, material defects, or weld separation for a period of ten (10) full years from completion of installation when operated within engineered load ratings.
Annual structural inspection and laser alignment calibration audits are available through our nationwide field engineering division.
Related Systems in Material Handling Equipment
View Full Category ➔
Material Handling Equipment

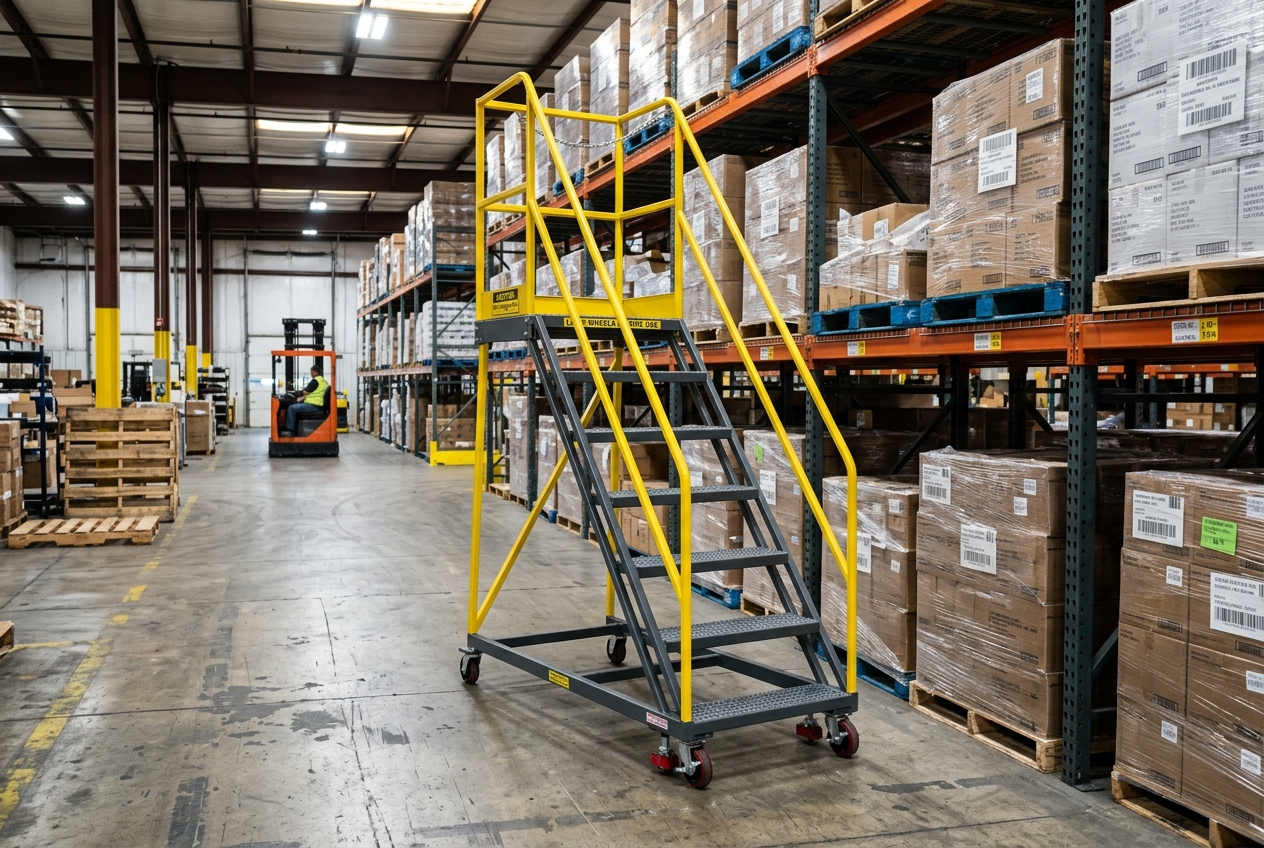

Moveable Stair
