Industrial Furniture
Steel Material Grade
Heavy 14-Gauge Tubular Steel & Solid Laminate/Steel Top
Standard Dimensions
Standard 2400 x 1200 x 900 mm (Custom Built to Spec)
Protective Finish
Scratch-Proof Textured Epoxy Powder Coat
Engineering Codes
FEM 10.2.02 / RMI 2012 / ISO 9001
Heavy-Duty Fabric & Industrial Material Cutting Table
Precision-leveled cutting workstation engineered for garment manufacturing, aerospace composite cutting, sheet plastics, and industrial upholstery plants. Sturdy welded steel understructure prevents vibration.
Key Engineering Features:
- High-density wear-resistant laminated top or solid steel work surface with flush-set brass measuring rulers.
- Heavy 50x50mm structural box-tube legs with leveling foot pads for perfectly flat cutting alignment.
- Integrated lower storage shelves and slide-out fabric roll feed bars.
- Supports heavy automated circular roll-cutting machines and fabric spreading carriages.
Quality Assurance Guarantees:
Robotic MIG/MAG seam welding with 100% penetration
Positive spring locking safety pins on all connectors
High-capacity seismic floor baseplates with expansion anchors
Automated 7-stage chemical wash pretreatment before powder coat
Manufacturing & Structural Tolerances
| Raw Material Steel Grade | Q355B / Q235B High-Yield Cold-Formed Structural Steel |
|---|---|
| Yield Strength Limit | Minimum 355 MPa (51,500 psi) guaranteed yield point |
| Upright Profile Geometry | 90mm - 140mm roll-formed omega profile with stiffening ribs |
| Length Tolerance | Strict dimensional tolerance within ±0.5 mm per bay height |
| Beam Deflection Ratio | Engineered below L/200 under maximum rated payload (zero sag) |
| Connector Endplates | 3-claw and 4-claw heavy forged claw brackets with safety pins |
| Finish Cure Temperature | Electrostatic polyester powder cured at 200°C for lifetime adhesion |
10-Year Comprehensive Structural Warranty
Backed directly by Bodor Rack Industries Ltd. Plant EngineeringAll structural steel upright columns, box beams, cantilever arms, and seismic baseplates are warranted against structural failure, material defects, or weld separation for a period of ten (10) full years from completion of installation when operated within engineered load ratings.
Annual structural inspection and laser alignment calibration audits are available through our nationwide field engineering division.
Related Systems in Industrial Furniture
View Full Category ➔
Industrial Furniture
Packing Table
1800 x 900 x 850 mm (Adjustable Working Height)
Industrial Furniture
Centre Table
1500 x 900 x 800 mm (Heavy Floor Mounting)
Industrial Furniture
QC Table
1800 x 800 x 850 mm with Overhead Lighting
Industrial Furniture

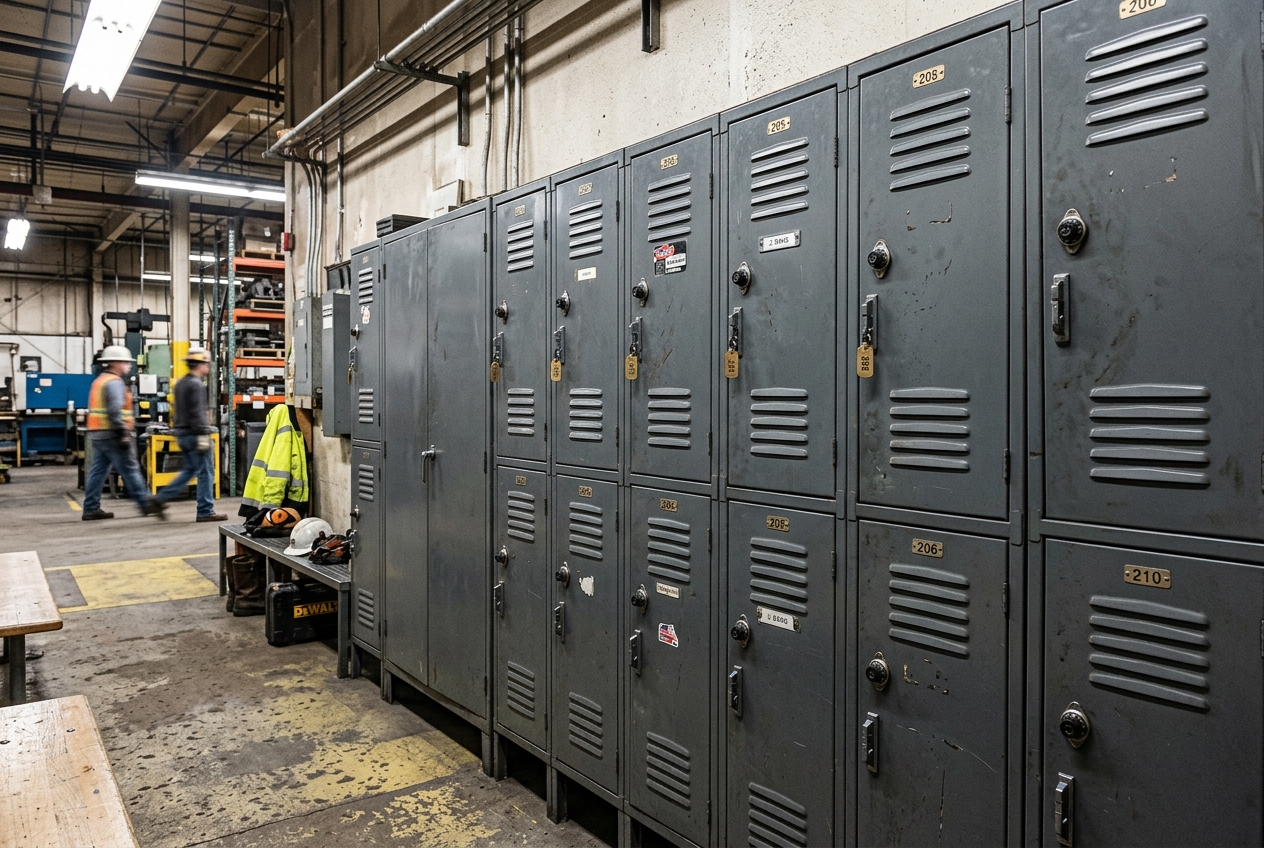

Worker Locker
